Steelfish - SF 1410

SF1410 - multi-purpose boat is intended for diving support, work service in offshore zone of seas and ocean, different assistance work and transportation. Towing capability with abt 5 T bollard pull.

Operation: Offshore zones of seas, bays, rivers and lakes at navigation period at sea state up to 2 m and wind force up to 6 points with the distance to refuge up to 50 miles.

Vessel type: Single-decker with raised bow with wheelhouse on it, main engine in middle part and aft working deck.

  • Length LOA, m 14,10
  • Width max, m 5,00
  • Light draft, m 1,30
  • Displacement, t 38
  • Crew / berth 6 / 6 in two cabin
  • Endurance by fuel, hour (not less) 180
  • Operational speed (not less): 10,0 +/- 0, 3 knot. – Depending on engine type

Proposed main engine: Volvo Penta D9MH (300 HP) - options available.

Proposed diesel generator capacity: 15 KW - options available.

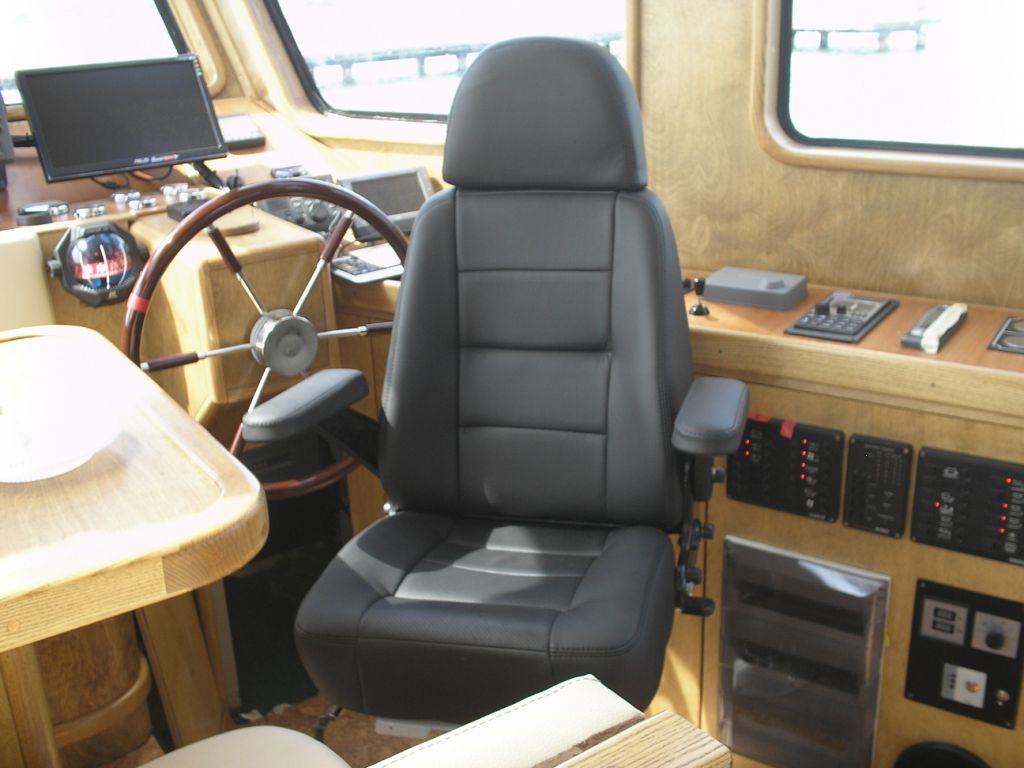

Navigation of the boat is performed from wheelhouse with steering control help of hand steersman engine and change of speed and direction of rotation of screw-propeller. On the boat to be installed navigation equipment as follows:

  • Radar, model Furuno 16-21 MK2.
  • VHF – radio with antenna model IC-M45.
  • NAVTEXT NASA MARINE
  • GPS GARMIN
  • Magnetic compass
